TIMECODE Pro V2 Adds Framenummer, Timecode and Date/Time to the video NEW: Support of Windows fonts   Used files:       timecode_pro2.fex V2.2     Installation: Save both files in the Liquid Edition installationsfolderie “ ..\plugins\rtfx\”

Vers ion	Date	Description
V2.0	19.1.2005	Complette new implementation to support windows fonts
V2.2	10.2.2005	Easier font selection automatic creation of XML-file mark fields for interlaced video memory leak corrected

This effect adds the current timecode. framenunber and/or date to the video.

It is usefull for reviews, when it is neccessary to specify the frames talking about.

After launching Liquid Edition, you’ll see in the effectlist a new categorie “HL’s VD-Filter”. In the rack “Editors” you will find the effect “Timecode Pro”.

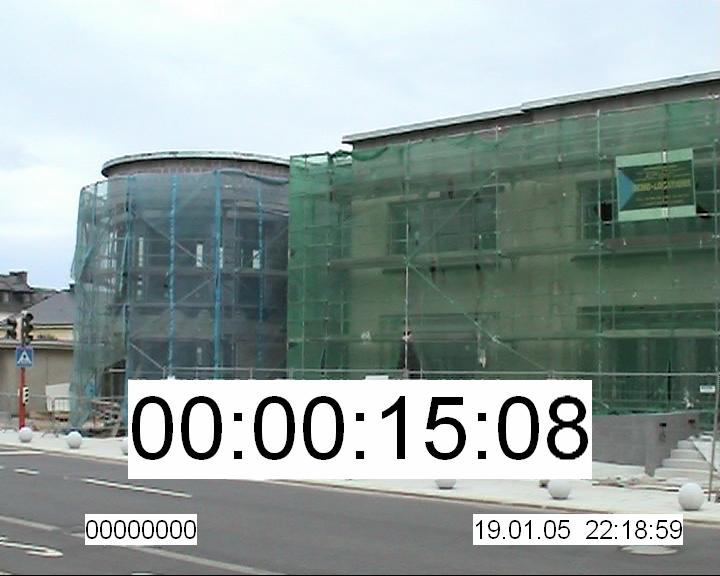

The effect stamps three values into the video:

timecode: current timecode of the frame: hh:mm:ss:frame

framenumber: current framenumber

time-date: current time and date of the edit session

You may switch on or off one or all of the values.

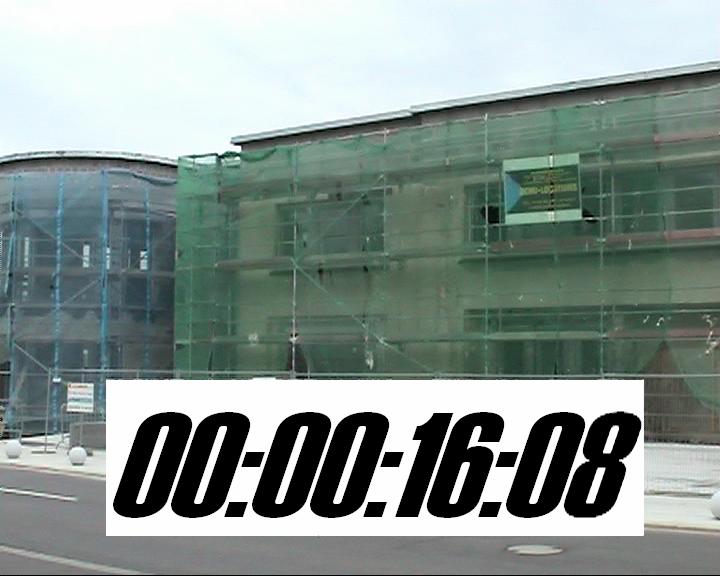

You can change the size, color and background color of the digits and the font

Parameters

Parameter Description Timecode show timecode of the frame Fontsize font size of the timecode X-Pos X-Position Y-Pos Y-Position Style  hh:mm:ss:ff hh:mm:ss:ff (show fields) marks ss:ff upper field - ss.ff lower field Framenumbe show framenumber Fontsize font size of the framenumber X-Pos X-Position Y-Pos Y-Position Date show current date and time Fontsize Font size of the date X-Pos X-Position Y-Pos Y-Position Style Style of the date dd.mm.yy - dd.mm.yyyy - mm/dd/yy - mm/dd/yyyy - yy.mm.dd - yyyy.mm.dd Font Color Font Color Backgrd Color Background Color Font Type Select the windows font. Show Font shows the name oif the current font Hintergrund Show background Font Weight Font Weight
